2G Vehicle Tracking Devices

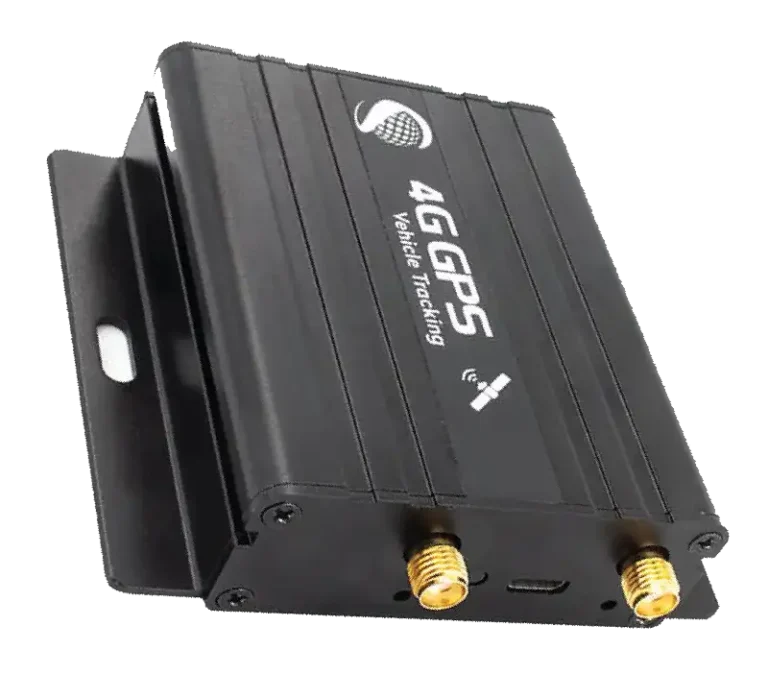

IStartek VT800-L
Type: 4G professional-grade tracker
Best For: Heavy machinery, trucks, construction vehicles
The VT800-L is a 4G vehicle tracker that is designed to conduct real-time location reporting, tracking of vehicles, and high anti-theft security. Its ultra-precise GPS unit is a guarantee to proper fleet tracking, a school bus, taxi, leasing, trucks, trailer, insurance cars or even personal vehicles. Having a 128Mb inbuilt memory, it automatically stores the data on a trip when no signal is found and then uploads this information as soon as signal is regained.
Features:
Features:
- High GPS accuracy
- Remote immobilization
- Detailed fuel monitoring (optional)
- 3 Input and 2 Output
- 1 AD and 1 Wire
- 9-100V Power Supply
- 2RS232
Specification:
Specification:
Case Size: 72*61*24mm
Power Supply: 9~100V Input, low power outage
IN1: Default negative trigger, software configurable positive and negative trigger
IN2: (ACC Detection) Positive trigger by default, positive and negative trigger
IN3: Positive trigger by default, positive and negative trigger can be configured by software
AD: Default AD input, software configurable positive, negative trigger and AD input (0-36V)
Output Port: Open drain output, driving capability greater than 500MA
1-wire Interface: Digital, iButton or temperature interface
RS232: Can be connected to RFID, oil sensor, magnetic card reader, camera, OBD
Micphone: External MIC, two-way conversation
Speaker: External Speaker, two-way conversation
MCU: Cortex-M4，AT32F415RBT7
Battery: 500mAh, high-temperature battery
Use Case: Construction projects in Abu Dhabi & Dubai using cranes, bulldozers, and trucks.
